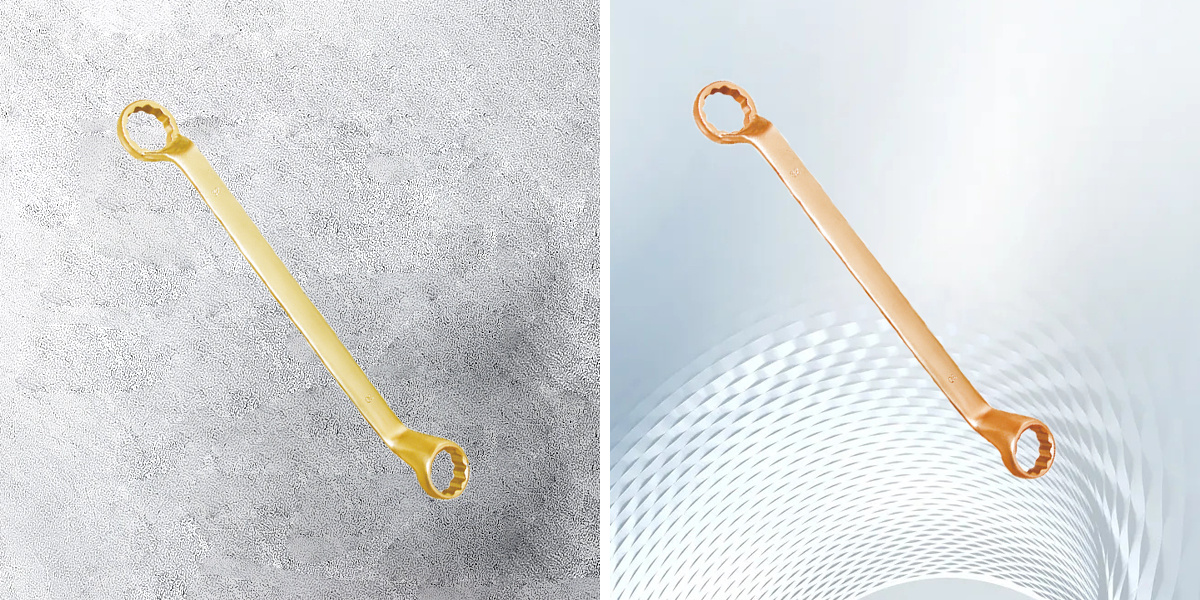

151A Wrench, Double Box Offset

■ Beryllium copper alloy and Aluminum bronze material. ■ DIN838Standard. ■ Die forged. ■ Both ends generally fit the same size of bolts and nuts.

Classification:

  • Product Description
  • Product Features

    ■ High quality raw materials.
    ■ Drop forged process.
    ■ High strength, high quality.
    ■ Long using lifespan.
    ■ BAM、 FM、 GS、ATEX international certificates etc.
    ■ Mechanical performance warranty for life

    Product Detail Presentation

    Product Parameters

    German DIN standard ISO standard

    Number

    S1*S2

    mm

    L

    mm

    Be-Cl

    g

    Al-Cu

     g

    151A-1719 17*19 280 180 160
    151A-1922 19*22 300 210 190
    151A-1924 19*24 320 320 290
    151A-2123 21*23 320 370 335
    151A-2224 22*24 330 420 380
    151A-2427 24*27 340 480 430
    151A-2730 27*30 350 530 480
    151A-3032 30*32 370 690 620
    151A-3236 32*36 430 1000 910
    151A-3641 36*41 470 1270 1150
    151A-4146 41*46 500 1580 1430
    151A-4650 46*50 525 1900 1720
    151A-5055 50*55 550 2850 2580
