• Product Description
  • Product Features

    ■ High quality raw materials.
    ■ Drop forged process.
    ■ High strength, high quality.
    ■ Long using lifespan.
    ■ BAM、 FM、 GS、ATEX international certificates etc.
    ■ Mechanical performance warranty for life

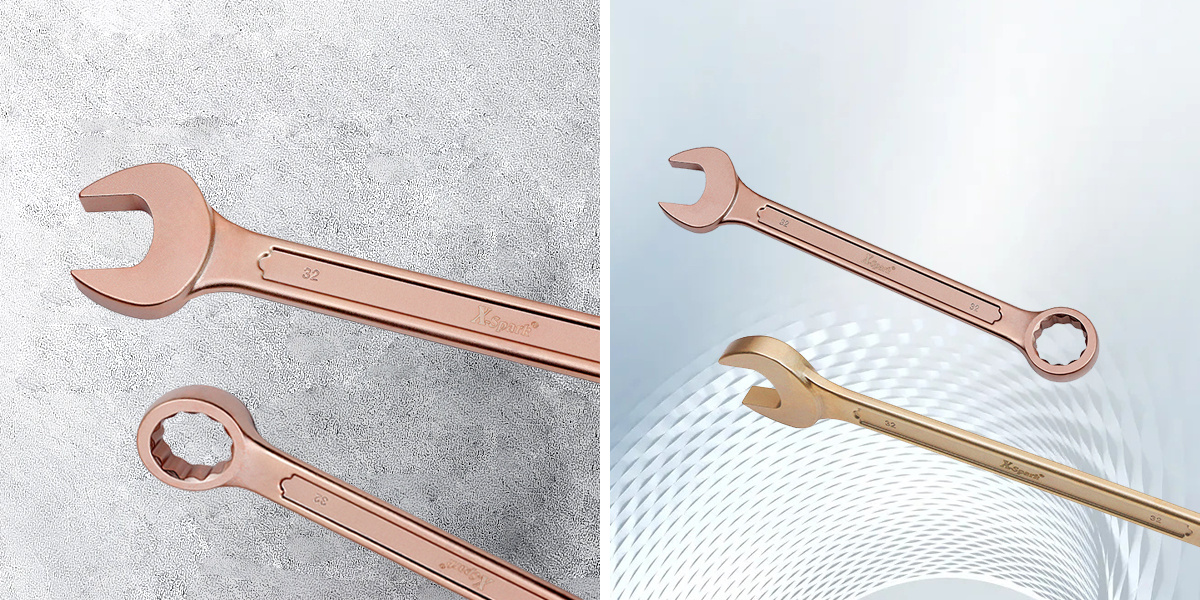

    Product Detail Presentation

    Product Parameters

    German DIN standard ISO standard

    Use Used in flammable and explosive places, clamping or bending thin sheets, cutting wires or wires.
    Manufacturing Process Die forging products
    Material Beryllium bronze alloy, aluminum bronze alloy
    Specifications and main technical parameters
    Number S/mm L/mm Be-Cu/g Al-Cu/g
    135-6 6 105 22 20
    135-7 7 120 37 34
    135-8 8 120 37 34
    135-9 9 135 55 50
    135-10 10 135 55 50
    135-11 11 150 75 75
    135-12 12 150 75 70
    135-13 13 175 122 110
    135-14 14 175 122 110
    135-15 15 195 160 145
    135-16 16 195 155 140
    135-17 17 195 155 140
    135-18 18 215 210 190
    135-19 19 215 210 190
    135-20 20 230 225 200
    135-21 21 230 225 200
    135-22 22 245 250 220
    135-23 23 265 265 233
    135-24 24 265 260 230
    135-25 25 265 260 230
    135-26 26 290 260 380
    135-27 27 290 420 380
    135-30 30 320 420 500
    135-32 32 340 670 600
    135-34 34 360 850 750
    135-35 35 360 890 800
    135-36 36 360 890 800
    135-38 38 395 1200 1150
    135-41 41 430 1440 1300
    135-46 46 480 1890 1700
    135-50 50 520 2220 2000
    135-55 55 560 2460 2230
    135-60 60 595 3300 2950
    135-65 65 595 3250 2900
    135-70 70 630 4550 4100
